£240.26

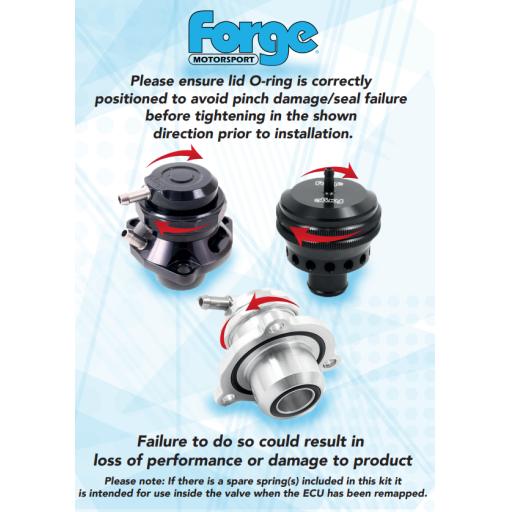

Instructions

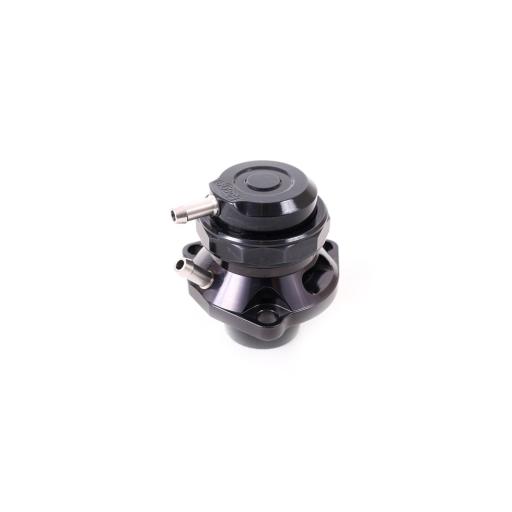

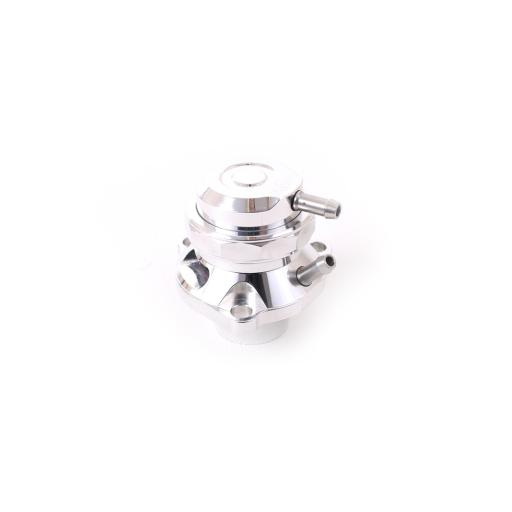

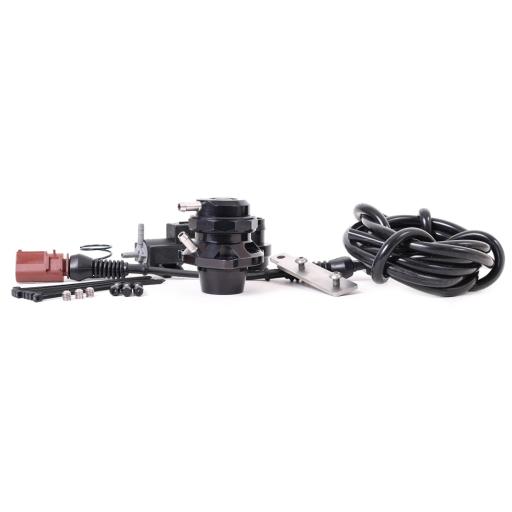

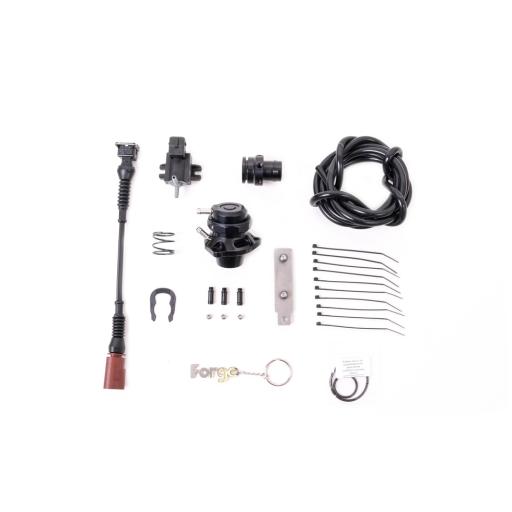

The Forge Motorsport FMFSITVR is a full-replacement, piston-operated recirculating dump valve for selected VW, Audi, SEAT and Škoda 1.4T, 1.8T and 2.0T FSI/TSI engines, including late 2011–2013 2.0T engines fitted with an IHI turbo.

Constructed from billet aluminium, the FMFSITVR features a piston-based internal design engineered to improve reliability over the OEM diaphragm-type valve while providing fast response and integration with the vehicle's original electronics. It is designed to address OEM valve failures caused by diaphragm rupture, which can result in boost leaks.

The valve's shorter installed height also allows fitment to compatible Audi A4 and A5 B7/B8 applications, where chassis clearance can prevent the installation of taller replacement valve assemblies.

Suitable for selected VW, Audi, SEAT and Škoda vehicles fitted with 1.4T, 1.8T and 2.0T FSI/TSI engines, including late 2011–2013 2.0T engines equipped with an IHI turbo.

Important fitment information:

• 1.4T turbo configuration: Only fits engines up to early 2013 where the turbo is mounted at the front of the engine bay.
• Engine codes CMBA and CXSB: Not compatible.

The additional manifold reference ports can be used for a boost gauge signal or a water/methanol injection trigger, where applicable.

Forge Motorsport recommends servicing the valve every 3 years or 20,000 miles, whichever comes first.
