ADU Pre Made Loom

0177

£336.00

Qty

A loom pre built for ECUMaster ADU5 or ADU7, using the original AMPSEAL connector. Taking away the stress of wiring in your own dash.

Fitted with:

  • 2 options for switches, these can be used for resetting page values and swapping pages. (Switches will be a random colour or finish and will need connecting by the user due to mounting them)
  • A connector on the end of a 1200mm length is used to connect power, ground and CANBUS. Including a GPS connection
  • Included as well is a port ready for CAN communication using the ECUMaster USB to CAN and a USB port to record your logs from the ADU.

The loom is wrapped in cable sleeve to give it a smart look and keep all wiring neat.

 Detailed pinout can be found here

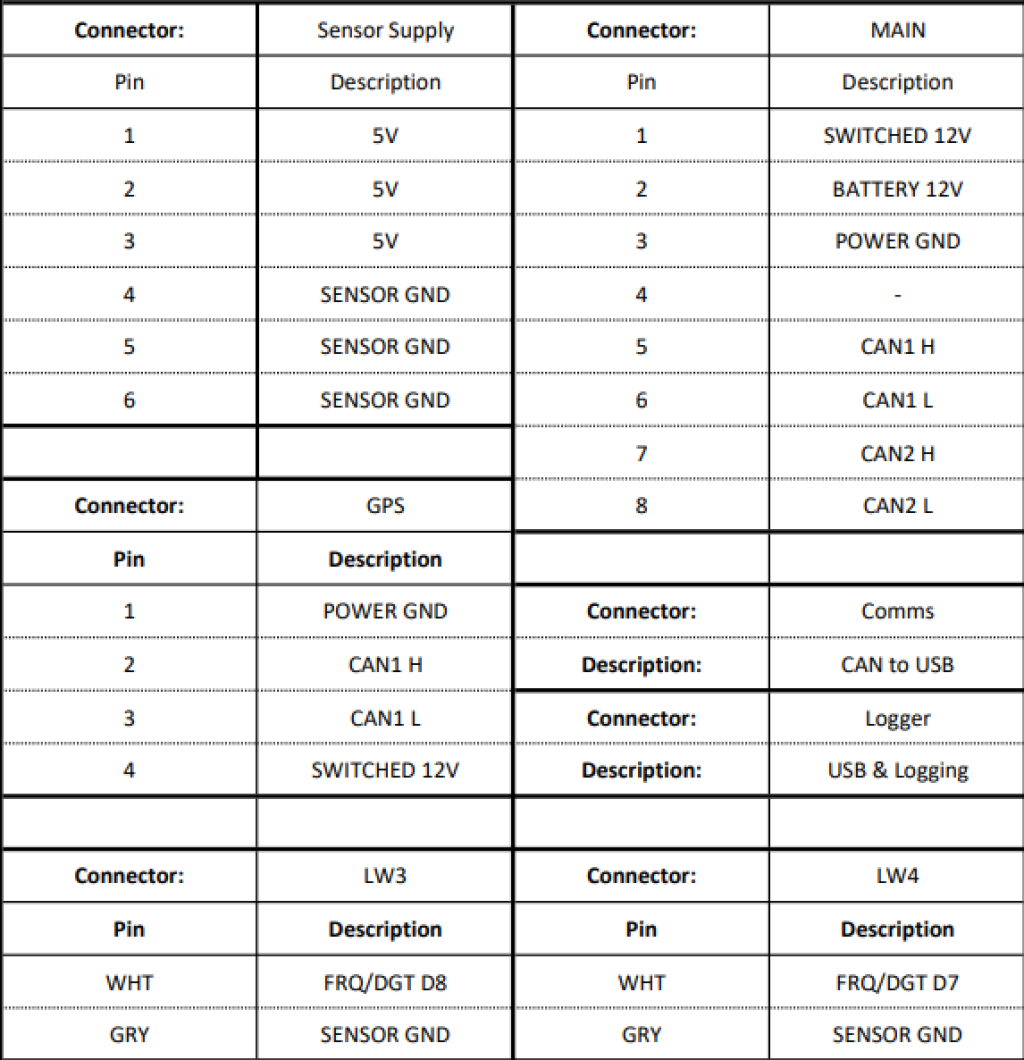

ADU
Pre-Made Loom Pinout
Sensor Supply Connector
Pin Description
1 5V
2 5V
3 5V
4 SENSOR GND
5 SENSOR GND
6 SENSOR GND
MAIN Connector
Pin Description
1 SWITCHED 12V
2 BATTERY 12V
3 POWER GND
4 -
5 CAN1 H
6 CAN1 L
7 CAN2 H
8 CAN2 L
GPS Connector
Pin Description
1 POWER GND
2 CAN1 H
3 CAN1 L
4 SWITCHED 12V
Comms Connector
Description: CAN to USB
Logger Connector
Description: USB & Logging
LW3 Connector
Wire Description
WHT FRQ/DGT D8
GRY SENSOR GND
LW4 Connector
Wire Description
WHT FRQ/DGT D7
GRY SENSOR GND
