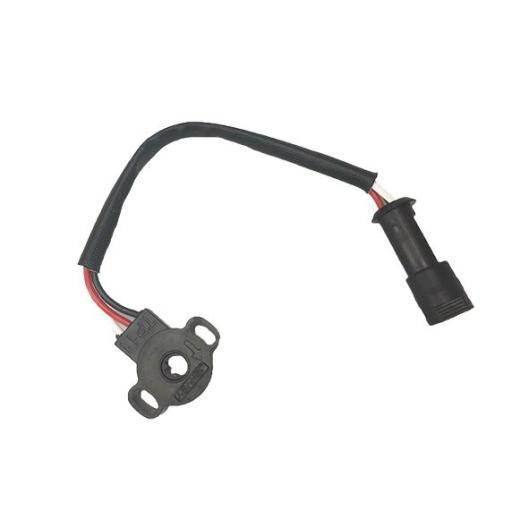

Jenvey Throttle Position Sensor

0010

£132.00

Qty

TECHNICAL DRAWING
FITTING INSTRUCTIONS

Pin 1 - Signal (red wire)
Pin 2 - +5v (white wire)
Pin 3 - 0v (black wire)

If the plug is removed or wires are damaged, this immediately voids the warranty therefore a refund or replacement can't be offered. Recommended torque on mounting bolts is 1.6Nm

TPS colour code wiring can be found in the attached drawing
