Garrett Turbocharger Stage 1 VW/Audi 2.0L TSI MK7-485HP (GT2260S)

0008

£1306.56

Qty

Installation Manual

Overview

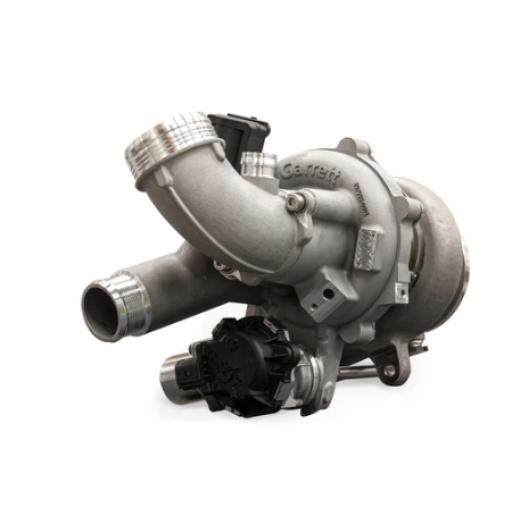

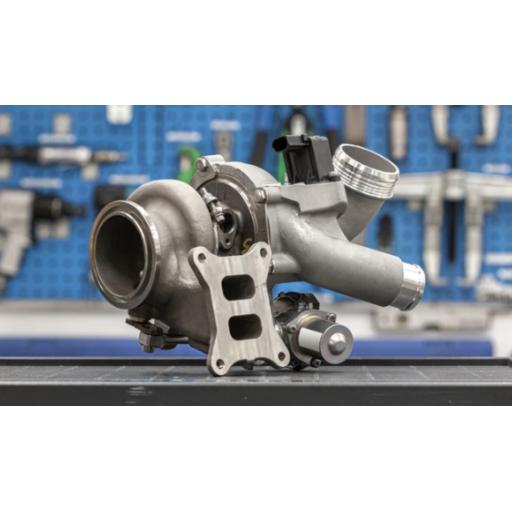

The Garrett GT2260S is a direct-fit Stage 1 turbocharger upgrade for Audi A3, S3, TT, TTS and VW Golf 2.0L TSI applications. The complete assembly includes a calibrated electric actuator and ancillary components for OE fitment.

Garrett lists a capability of 485 flywheel horsepower, based on on-vehicle results, with 17% more flow than the IS38 turbocharger fitted to a stock Golf R.

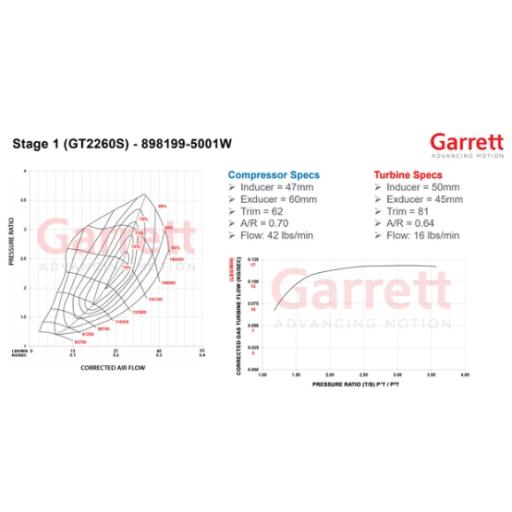

Turbocharger Specification
Turbocharger Garrett GT2260S
Stage Stage 1 upgrade
Power Capability 485 flywheel horsepower
Flow 17% increase compared with IS38 turbo on a stock Golf R
Actuator Calibrated electric actuator
Compressor Wheel GTX Gen II compressor wheel aero
Turbine Wheel Modern gasoline turbine wheel aerodynamics
Turbine Material Mar-M alloy
Turbine Housing Stainless steel
Temperature Rating Up to 1050°C
Rotor Group Latest generation journal bearing rotor group
Thrust Bearing 360-degree reinforced thrust bearing

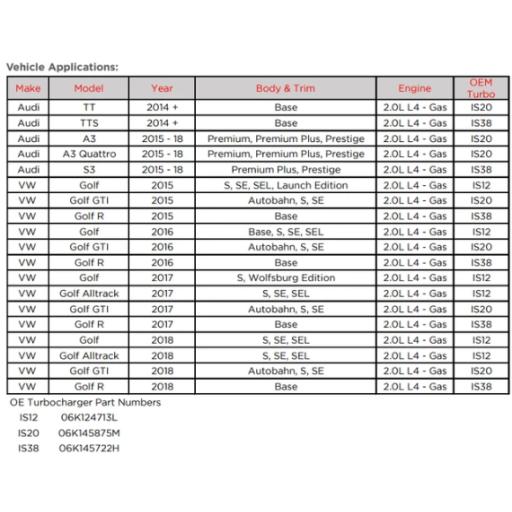

Compatible Vehicles
Audi A3
Audi S3
Audi TT
Audi TTS
VW Golf – Base, AllTrack, GTI and R
Turbocharger Speed

Maximum allowable turbocharger speed: 185krpm

Operation above the maximum turbocharger speed is at the owner's risk and can result in damage and premature failure.

A speed sensor port is machined into the compressor housing for monitoring turbocharger speed.

Speed sensor options:
781328-0003 – includes sensor and gauge
781328-0004 – includes speed sensor

Speed sensors are sold separately.

Performance Testing

The stated 485 flywheel horsepower result was achieved by Garrett using the following supporting modifications:

Intercooler Larger intercooler
Exhaust Custom exhaust system
Pistons Reinforced pistons – 9.2:1 compression ratio
Fuel System Larger high-pressure fuel pump and larger injectors
Transmission Software upgrade only
Cylinder Head Valve springs only
Fuel 102 octane unleaded
