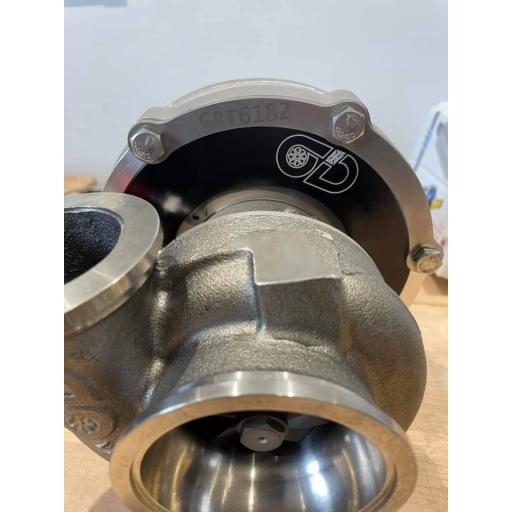

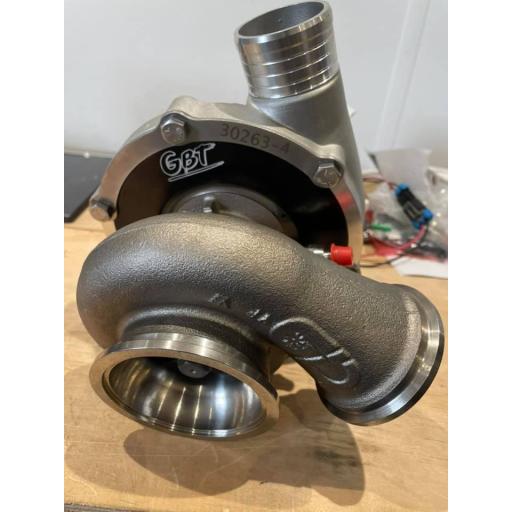

GBT 6182 - New, Unused Old Stock.

Comp cover - Ma5 (0.61 ar ) 4” ported inlet 2” outlet .

Turbine housing - NT5.3 vband in and out, 0.62ar

Water cooled bearing housing.

New, unused condition.





61MM TURBINE FRAME TURBOCHRAGER



Designed for 1.8-3.0L engines where fast spool time is a priority.



Punchy, lightweight, powerful.



  • Fully rebuildable
  • Fully servicable



The 61mm frame GBT is the mid-sized option in the range. This unit will typically suit 1.8-3.0 litre engines providing outputs from 500-650bhp. With cross over in power figures from the 54mm to the 61mm, the operating compressor efficiency can always be high with the correct unit selection. An added advantage to the Ma5 cover is that it has the same fitment as the Ma7 cover and therefor are interchangeable by design.



Features:

  • Dual Ceramic Ball Bearing System
  • Inconel 713 Turbine Wheel
  • High Quality Billet HTA Compressor Wheel
  • Heavy Duty Stainless Steel Heatshield
  • Anti-Surge Ported Shroud Compressor Cover
  • In-Line, Servicable Oil Filter System



Specification:

  • 61mm Frame GBT
  • 82mm Compressor Wheel
  • Compresor Wheel Trim : 52.3
  • Inducer Diameter : 59.3mm
  • Exducer Diameter : 82mm



Power Range : 500HP - 660HP

£1,470.00
