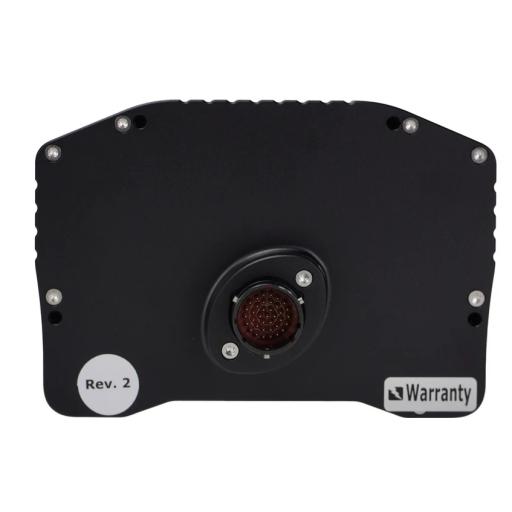

Ecumaster ADU

0143c

ECU Master

£1506.00

Option

USB to CAN - £125.88
Ecumaster USB to CAN with comms lead

Mount - From £71.88
ADU Flush Mount

Qty

The ADU features multiple pre-configured display pages that can be fully customised to show the data you need for each stage of a session—practice, qualifying, race, or troubleshooting. Pages can switch manually or automatically using advanced condition rules.

Each channel—gauges, icons, or text—can be easily edited via intuitive Windows-based software. A comprehensive overlay system allows critical information, like low oil pressure or best lap, to be displayed independently of the active page.

To communicate with the ADU you need a CAN bus interface, it is possible to use PEAK-System or Kvaser or Ecumaster.

Frequently bought together

ADU Pre Made Loom - A loom pre built for ADU5 or ADU7, using the original AMPSEAL connector.
GPS to CAN Module V2 - Delivers high-accuracy position tracking with a 25 Hz update rate, ideal for motorsport data logging and analysis.
GPS to CAN V2 Autosport Module - Designed for Autosport applications. Supports GPS, GLONASS, Galileo, and BeiDou satellite systems for fast, accurate positioning.
Dash Logger for CAN / RS232 - The most precise and simple way to get lap times, with ECU data and overlay it all with your SmartyCam video as well.

Features
Lap Timer	Lap timer with memory, predictive timing, triggered by beacon or GPS.
Customisation	48 available pages with user-defined content and custom graphics.
Functions	User configurable maths and logic.
Overlays	Fully user-defined.
CAN Stream	User-defined, up to 48 input messages with predefined streams for popular ECUs.
General Specification
Operating Voltage	6–22V with ISO 7637 transient protection and reverse polarity protection.
CPU	32-bit automotive processor, 90 MIPS.
Temperature Range	-30°C to +80°C.
Enclosure	CNC-machined anodised aluminium, IP61 rated.
Connection	Automotive 36-way AMP connector.
ADU 5"	800×480 anti-glare TFT display, 108 × 64.8 mm active area, 600 cd/m² brightness.
ADU 7"	800×480 anti-glare TFT display, 154.08 × 85.92 mm active area.
Alarms	15 ultra-bright RGB LEDs used for alarms and shift lights.
Communication
CAN	2 × independent CAN 2.0B (250 / 500 / 1000 kbps).
Serial	RS232 (Rx, Tx).
USB	USB interface for data logging.
Inputs
Analogue Inputs	8 analogue inputs, 10-bit, 500Hz, software selectable pull-ups/pull-downs.
Digital Inputs	8 inputs with user-defined sensitivity.
Outputs
Auxiliary Outputs	2 × protected 3A low-side outputs.
Data Logging
Memory	USB Flash memory.
Logging Rate	500Hz.
Clock	Integrated real-time clock.
Other Features
Accelerometer	3-axis gyro and 3-axis accelerometer.
Light Sensor	Automatic display brightness adjustment.
Temperature Sensor	Internal temperature monitoring.
Real-Time Clock	Internal battery-backed clock.
