£408.00

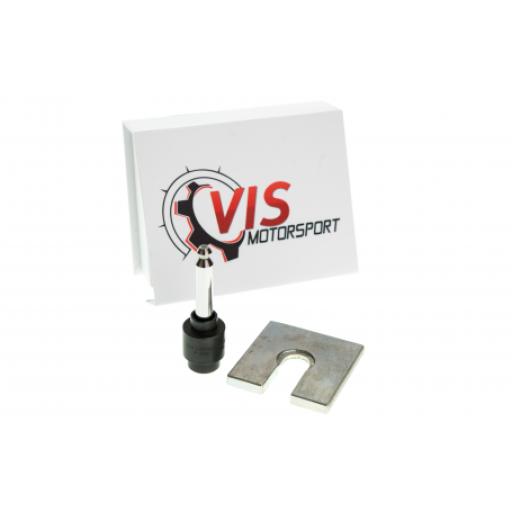

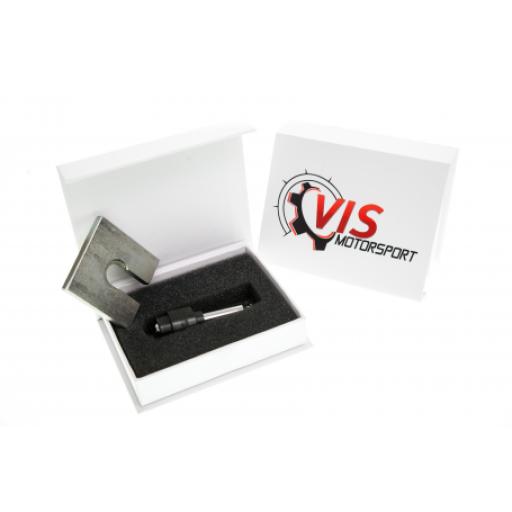

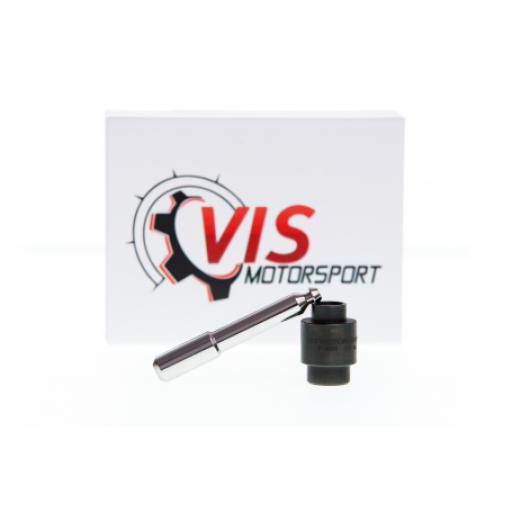

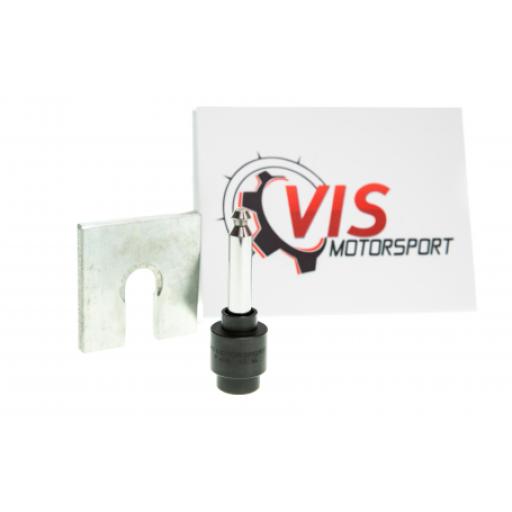

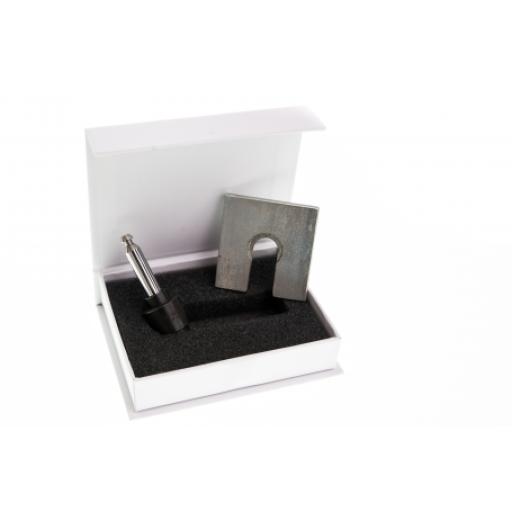

VIS Motorsport High Pressure Fuel Pump Upgrade Kit 2.0TFSi - EA113

Installation

Designed for heavily modified 2.0 TFSI EA113 engines, this upgrade addresses the limitations of the factory high-pressure fuel pump (HPFP), which can struggle to maintain rail pressure at higher power levels and may cause midrange fuel cuts.

Replaces the internal pump components responsible for fuel pressurisation, increasing flow capacity and improving pressure stability for high-output applications. Manufacturing tolerances are extremely tight, with critical interfaces verified using CMM inspection and air-volume metrology. The piston-to-sleeve clearance is engineered to microscopic precision and must be handled with care to avoid surface damage.

Key Features

• Enlarged piston design: approx. 55–75% greater area than OEM
• Optimised flow-oriented piston head geometry
• Multi-stage heat-treated and hardened piston surface
• OEM-style spring keeper to maintain cam follower longevity
• Supports stock to high-power builds (~600 hp, 175+ bar capable depending on setup)
• Laser-etched for traceability and counterfeit protection
• Viton sealing O-ring for heat and chemical resistance

Benefits

• Increased fuel delivery and rail pressure stability
• Reduced risk of fuel cuts under load
• Lower N276 solenoid duty cycle, improving longevity
• Reduced thermal and mechanical stress on HPFP system

Important Note Do not install into a pump immediately after engine removal. Thermal differences between components may cause internal binding or seizing.
