AEM High-Flow Low-Current WMI Solenoid

0014

AEM

£144.14

Qty

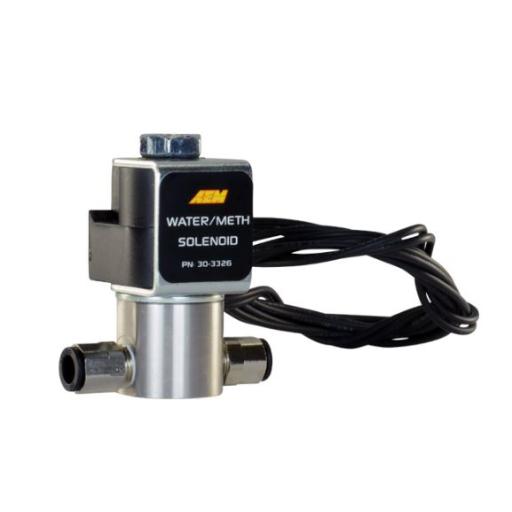

AEM Water/Methanol Injection Solenoid Valve – 12V

The AEM Water/Methanol Solenoid is a 12V, normally-closed shut-off valve for water/methanol injection systems. It prevents flow when de-energised, eliminating siphoning under vacuum.
Constructed with a stainless steel body, it is designed for consistent shut-off performance in motorsport environments. Rated at 3,600 cc/min flow capacity, it supports high-output WMI systems. Low current draw (0.75 A) allows direct control via ECU or WMI controller without an external relay.

Features:

  • High flow rating (3600 cc/min @ 150 psi)
  • Low current draw (0.75A @ 13.5V)
  • No additional relay required
  • Standard 1/8”- 27 NPT inlet/outlet with included ¼” push-to-lock hose fittings for easy installation
  • Fast response time
  • Tested to 200 PSI
  • Stainless steel enclosure and internals with EPDM seals for corrosion resistance
  • Flying leads simplify connection with user desired connector

£144.14
