AIRTEC Motorsport Intercooler Upgrade for 1.8 / 2.0 TSI EA888 Gen 4 Engine – 2020 Onwards

0122e

£766.24

Qty
AIRTEC MOTORSPORT
EA888 Gen 4 Front Mount Intercooler
Audi A3 / S3 • SEAT Leon • VW Golf GTI / R
AIRTEC Part No: ATINTVAG45

Fitting Instructions

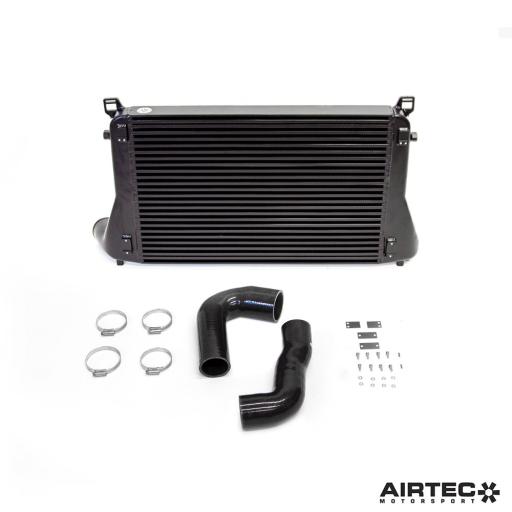

This AIRTEC Motorsport front mount intercooler is designed for the EA888 Gen 4 platform, providing increased capacity and frontal area compared with the OEM intercooler.

The direct-replacement kit uses a 16.4-litre core with high-flow, one-piece cast end tanks and includes Pro Hoses silicone boost pipes, fittings, fixtures and a detailed fitting guide.

KEY FEATURES
Intercooler Features
EA888 Gen 4 specific design
16.4-litre capacity
80% increase in capacity over OEM
Increased frontal area
High-flow one-piece cast end tanks
Pro Hoses silicone boost pipes included
Powder coated black finish
Fittings and detailed fitting guide included
TECHNICAL DATA
Dimensions & Capacity
Specification OEM AIRTEC
Width 619mm 620mm
Height 409mm 420mm
Depth 36mm 63mm
Capacity 9.1 litres 16.4 litres
Front Area 2,532cm² 2,600cm²
DYNO TEST DATA
AmD Tuning Dyno – Modified Golf R Mk7
Test Standard AIRTEC
Power 336.1bhp 371.8bhp
Torque 350.9 lb ft 352.9 lb ft
Run 1 – IN 115° 116°
Run 1 – OUT 44° 18°
Run 2 – IN 117° 117°
Run 2 – OUT 48° 20°
FITMENT
Compatible Vehicles
2021 onwards – Audi 8Y A3
2021 onwards – Audi 8Y S3
2020 onwards – SEAT Leon 2.0 TSI
2021 onwards – VW Mk8 Golf R 2.0T
2021 onwards – VW Mk8 GTI 2.0T

£766.24
