£382.80

Designed for seamless integration with CAN-enabled data logging and display systems, this high-speed TPMS (Tyre Pressure Monitoring System) provides real-time tyre pressure and temperature monitoring for serious motorsport applications.

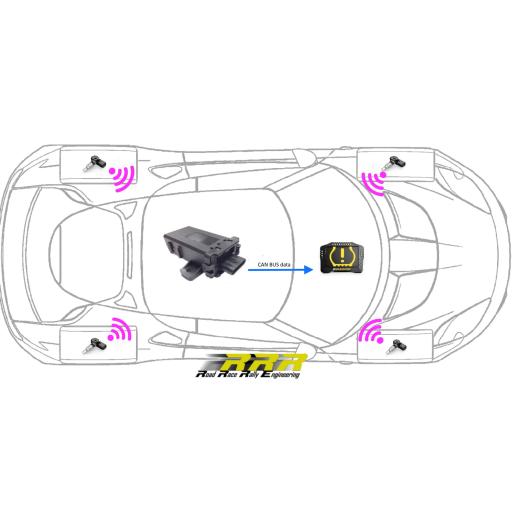

Unlike conventional road-car TPMS systems, this motorsport version transmits data at 1-second intervals, delivering highly responsive pressure and temperature updates for accurate on-track analysis. The system broadcasts data via CAN bus, making it compatible with any ECU, dash, or logger capable of receiving CAN data, including Ecumaster ADU displays.

Monitor and log live tyre pressures and temperatures from all four wheels, enabling detailed analysis of tyre behaviour, pressure build-up, and thermal performance throughout a session. The high-resolution data allows teams and drivers to accurately assess cold-to-hot pressure changes, optimise starting pressures, identify handling trends, and make data-driven setup adjustments.

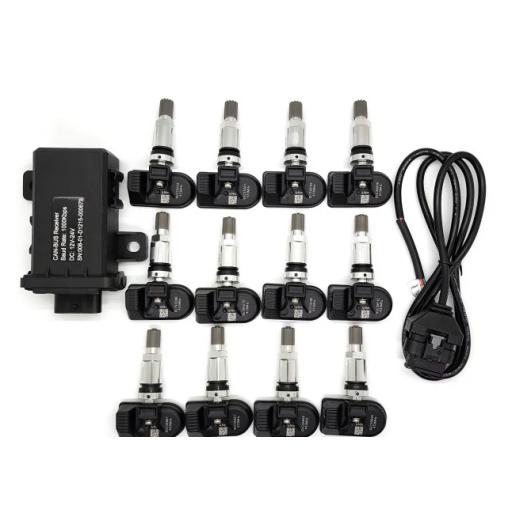

The system supports up to three wheel sets as standard and can be programmed to accommodate additional wheel sets if required. Replacement sensors can also be cloned to match existing sensor IDs, simplifying maintenance and reducing downtime following wheel or sensor damage.

Key Features

• Real-time tyre pressure and temperature monitoring
• High-speed 1-second data transmission rate
• CAN bus output for integration with compatible ECUs, dashes, and loggers
• Live display and logging of four tyre channels
• Accurate pressure and temperature data for setup optimisation
• Supports up to three wheel sets as standard
• Additional wheel set programming available
• Replacement sensor cloning service available
• Ideal for track day, sprint, circuit racing, and endurance applications

Note: This system provides CAN output only and requires a compatible device with a free CAN input for configuration, display, and data logging.

The system is supplied with a connector and fly leads. If you wish to make your own loom and connect it directly to the receiver, add the connector above to your order. (Supplied connectors are with terminals, and seals.)

Specifications:

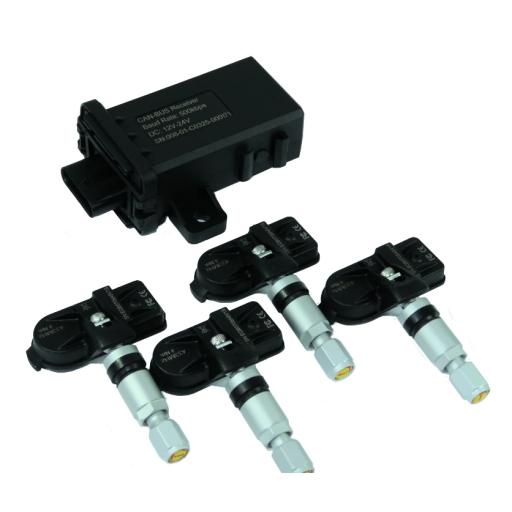

TPMS Receiver:

• Working voltage: DC 9V-25V
• Working current: less than 15mA
• Working frequency: 433MHz
• Working temperature: -40 - 85 Deg.C

Canx definition for Ecumaster devices can be found here.
DBC can configuration file is available here
