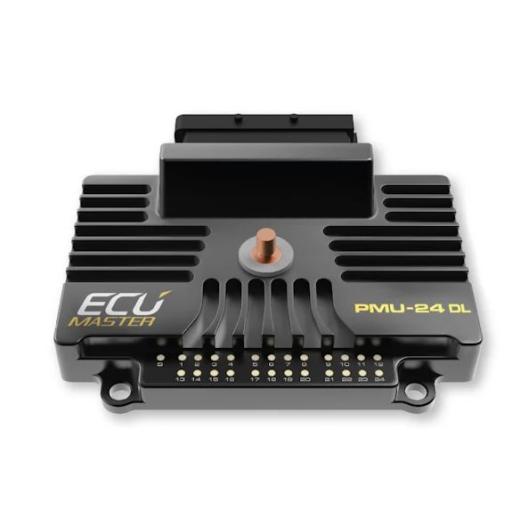

Ecumaster PMU24DL - Power Management + Datalogging

£1,558.80

Qty

PMU-24 DL is an new advanced Power Management Unit offering the advantages of PMU-16, plus additional high-side outputs and an integrated data logging memory.



170 Amps total continuous current.
Operating voltage: 6-22V (immunity to transients according to ISO 7637)
Temperature range: AECQ-100 GRADE 1, -40 to +125°C.
10x 25 Amps high-side power outputs (PWM capable).
6x 15 Amps high-side power outputs.
8x 7 Amps high-side power outputs.
Up to 16 analog inputs.
24x tricolor LED for each power output state.
2x CAN 2.0 A/B.
256 MB data logger memory.
Up to 500 Hz logging frequency.
Real-time clock for data stamping.
3D accelerometer/gyroscope.

Mating connectors and terminals included.

Please note for communication to the PMU a CAN interface is required.  USB to Can available separately ( listed as an add on )
